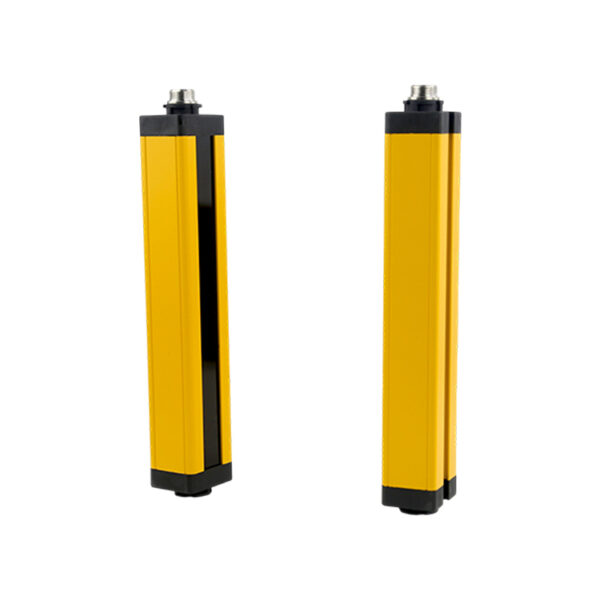

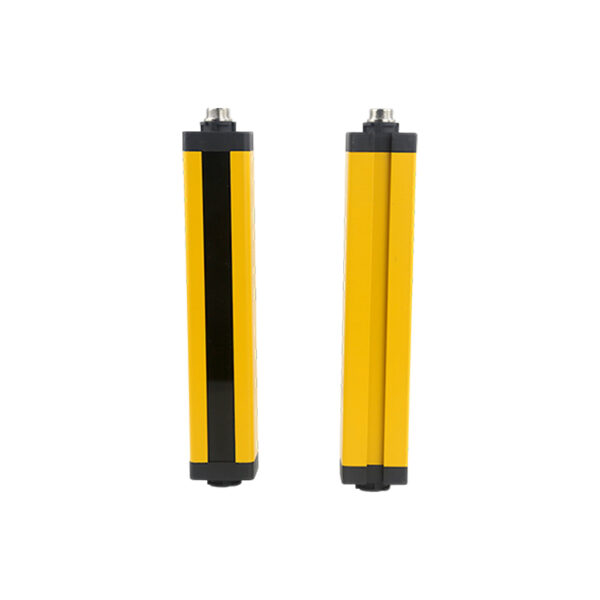

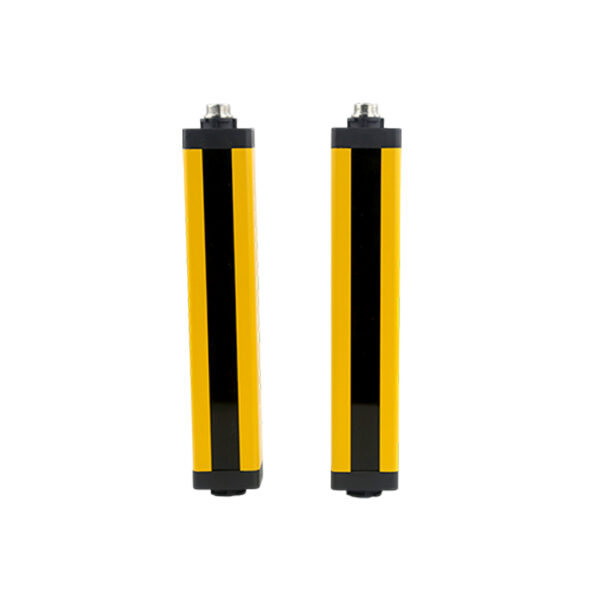

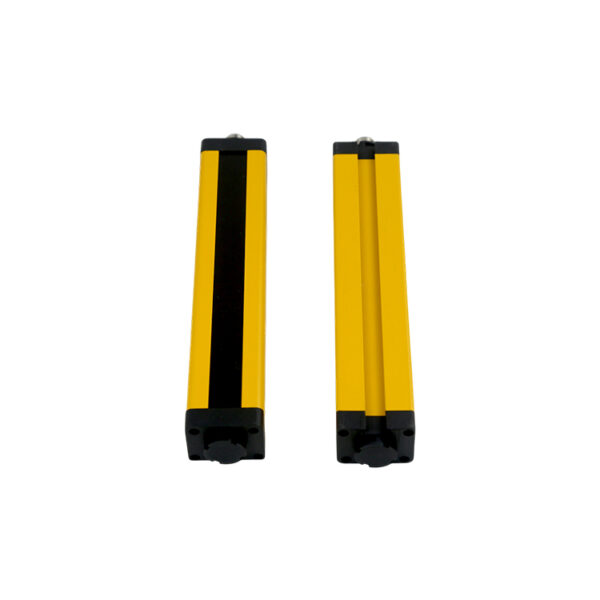

8-Beam Infrared Safety Light Curtain Sensor for Machines

Industrial infrared safety light curtain with 8 beams, 10mm beam spacing and 70mm protection height. Features ≤15ms response, 940nm invisible NIR light, automatic reset, IP65 metal housing, short-circuit/overvoltage protection and 24V DC PNP output.

Product
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Product model Dural safety light sensor SSE0810
1 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Standard configuration One receiver, one transmitter, two data lines, one right-angle rack, and one t-shaped screw
2 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Light curtain source Infrared radition type
3 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Application Standard industrial environment
4 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Features
5 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Number of beams 8
6 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Beam Space 10mm
7 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Protect Height 70mm
8 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Total Height 145mm
9 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Response time ≤15ms
10 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Synchronization Line synchronization
11 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Output mode 2-circuit of PNP, with current of 500mA and voltage below 1.5V, polarity, short circuit and over-cutting protection
12 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Output status ON (receiving indicator green light)
13 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Indicator light Transmitter: power indicator light (red); receiver: output indicato「light on (green), blackout (red)
14 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Wavelength 940NM
15 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Type of light Infrared light (NIR), invisible
16 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Function Automatic reset
17 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Mechanical data
18 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Housing material Metal
19 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Metal shell Aluminium
20 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Lens front screen material Acrylic
21 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Upper and lower cover materials ABS reinforced nylon PA66+30% GF
22 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Performance data
23 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Protection circuit Short circuit protection Overvoltage protection
24 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Supply voltage DC24V, -20…20%
25 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Output Current 500MA(NPN/PNP)
26 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Fuse 150mA
27 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Maximum residual current 0.2mA
28 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Environmental data
29 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Protection grade IP65
30 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Anti-optical interference 10000Lux(angle>5°)
31 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Operating Temperatuer -10°C ~55°C
32 afetycurtainadministrator-Michelle 11/05/2026 07:33 AM afetycurtainadministrator-Michelle 11/05/2026 07:33 AM Operating Humidity 0~95%RH
Model

SSE0810
Number of Beams

8
Beam Space

10mm
Protect Height

70mm
Total Height

145mm
